MD明达微 DC_DC升压系列：
| 型号 | 模式 | 输入电压 | 输出电压 | 电流消耗 | 输出电流 | 频率 | 效率 | 精度 | 封装型号 | |
| MD77XX | PFM | 0.7-4.5V | 1.8~5.0V | 4uA | 200mA | 110K | 88% | ±2.5% | SOT_89-3/5 |  |
| SOT23-3/5 | ||||||||||
| MD88XX | PFM | 0.7-4.5V | 1.8~5.0V | 4uA | 500mA | 350K | 85% | ±2.5% | SOT_89-3/5 | |
| SOT23-3/5 | ||||||||||
| MD3156 | PWM | 1.1-5V | 1.8~3.6V | 15uA | 300mA | 1M | 95% | ±2.0% | SOT89-3 | |
| SOT23-3/5 |

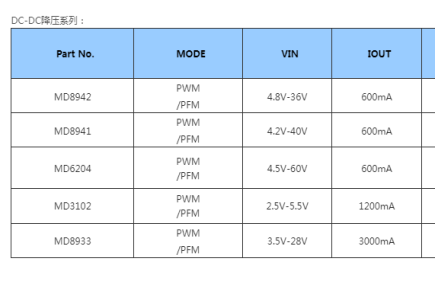

MD明达微 DC_DC降压系列：
| Part No. | MODE | VIN | IOUT | IQ | FOSC | Eff. | VFB | Package | |
| MD8942 | PWM/PFM | 4.8V-36V | 600mA | 130uA | 1.1M | 88% | VOUT±2% | SOT23-6 | |
| MD8941 | PWM/PFM | 4.2V-40V | 600mA | 140uA | 2M | 90% | VOUT±2% | SOT23-6 | |
| MD6204 | PWM/PFM | 4.5V-60V | 600mA | 0.7mA | 2M | 90% | VOUT±2% | SOT23-6 | |
| MD3102 | PWM/PFM | 2.5V-5.5V | 1200mA | 40uA | 1.5M | 96% | VOUT±2% | SOT23-5 | |
| MD8933 | PWM/PFM | 3.5V-28V | 3000mA | 100uA | 570k | 90% | VOUT±2% | SOP8,ESOP8 | |
